Elpress PEB Series for End Sleeves (Bootlace Ferrules)

Elpress-PEB0160S-PEB0116S-PEB0160H-PEB0116H-PEB-Series Self-adjusting, compact crimping tools for end sleeves with large working area from 0.14-16 mm2

Elpress is launching a new series of crimping tools for end sleeves. The tools have a compact, self-adjusting mechanism for crimping the end sleeves within the range from 0.14 to 16 mm2. The tool is available in two crimping geometries, regular square crimping and the new hexagonal crimping, which is optimized for confined applications.

Characteristics:
• small and compact, ideal for confined spaces
• lock function which only releases after crimping is complete
• well balanced so the tool does not slip out of your hand
• high-friction grip provides the ability to use the tool with a table as a support
• hole for attaching a safety strap
• ergonomically designed handle made of grip friendly material
• low handle force is required when crimping larger areas
• emergency release if the crimping sequence has to be interrupted
• tested together with Elpress terminals
• delivered with certificate for quality assurance

PEB0160S & PEB0160H
• small handle opening angle - ideal for small hands

PEB0116S & PEB0116H
• large working area from 0.14-16 mm2

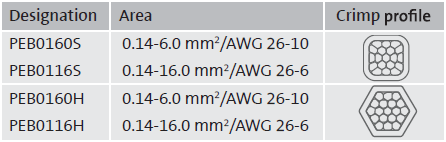

Elpress-PEB0160S-PEB0116S-PEB0160H-PEB0116H-PEB-Series-Crimp-Area

Elpress PEB Series Crimping Tools for End Terminals Bootlace Ferrules Data Sheet
