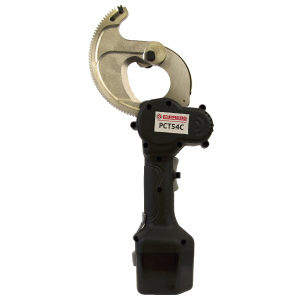

Elpress PCT54C Battery Operated Cable Cutter

Elpress-PCT54C-Battery-Operated-Cable-Cutter-Replaces-PKL54PCT 54C Cable Cutting Tool replaces Elpress PKL54

PCT54C is a high-quality and ergonomic electric cable cutter. The tool is designed to cut conductors easily and safely at the touch of a button. PCT54C has a Li-Ion battery with a long run time and short charging time, which makes working more efficient. The precision-ground blade on the cable cutter ensures a longer useful life and an optimum cut.

• Electric cable cutter for copper and aluminium cable
• Not intended for cutting steel
• Max cutting diameter 54 mm, which for the following cable types is the equivalent of:
1 kV Cu type FKKJ 4 x 95 mm2
Al type AKKJ 4 x 240 mm2
Al type SE-N1XV 4G x 240 mm2
12 kV Al type AXLJ 3 x 150 mm2
• The tool has a scissor action when cutting, which produces an optimum cut
• Integrated fuse as overvoltage protection
• CE-marked
• Delivered with case and battery, 14.4 Li-Ion

Battery voltage 14.4 V
Battery capacity 3 Ah, Li-Ion
Charging time approx. 40 min
Weight including battery 2.75 kg
Dimensions 105 x 375 x 115 mm

*Technical Data Subject to Change Without Notice

Elpress PCT54C Battery Operated Cable Cutter Data Sheet
