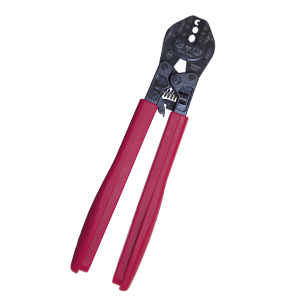

Elpress T2258 Crimping Tool for Cu-terminals 4 - 16 mm²

Elpress-T2258-Crimping-Tools-Cu-Terminals-4-16mm2
T2258

- new mechanism and new handles, as well as all the benefits from the old tool!

Certified crimping tool for non-insulated terminals 4-16mm². The handle length allows that the final phase of the crimp-cycle can be done with both hands, which result in increased comfort and efficiency.

Characteristics:
• Certified tool for Cu-terminals (KRF/KRD/CUT)
• Long handles allowing two handed operation for powerful, low effort crimping
• Scissor movement for optimal access in narrow spaces
• Ratchet release which is not released until the crimping is completed
• Emergency release if the crimping sequence must be interrupted
• Precision eccentric adjustment for consistent performance and ability to calibrate
• Each tool has a unique serial number for traceability




Technical Data Elpress T2258
Length 304mm
Width 30mm
Height 70mm
Weight 660g
Cable Size 4-16mm²
Crimp dimensions mm / mm² 4 - 16mm² / 10mm² / 16mm²
Life span, cycles 25.000

*Technical Data Subject to Change Without Notice

Elpress T2258 Crimping Tool for Cu-terminals 4 - 16 mm2 Data Sheet
