Elpress MINI PVL350 Electro Hydraulic Crimping Tool

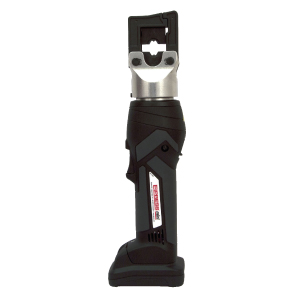

Elpress-PVL350-Electro-Hydraulic-Crimping-ToolThe Elpress mini tool PVL350 in a new sleek design with a high performance Li-Ion battery that streamlines your work with its improved battery capacity.

CHARACTERISTICS:
• Single-handed operation for easy control of all tool functions
• Slim fitting crimping head – ideal for confined spaces
• High-performance 10.8 V Li-Ion battery – with indication of charge status
• Opening, rotatable “flip-top” head for easy die change and goodaccessibility
• Easy and comfortable to use with one hand thanks to its ergonomic 2-component housing with grip-friendly protection
• Extremely lightweight and rapid crimping process for maximum efficiency
• Automatic return of dies when crimping is completed

TECHNICAL DATA PVL350:
Crimping force max 35 kN
Crimping range 6-70 mm2
Crimping process about 3-4 s (dependent on material)
Number of crimps about 180 for 70 mm² Cu
Battery voltage 10.8 V
Battery capacity 1.5 Ah, Li-Ion
Charge time about 40 minutes.
Weight including battery 1.6 kg
Ambient temperature -10°C to +40°C
Dimensions 330 x 85 x 60 mm

Elpress-PVL350-Electro-Hydraulic-Crimping-Tool-HEAD Application Area Dies
C-Sleeves 10-6/10-6mm2 MBC4
  CUT-Connectors 6-16mm2 MB4016

KR/KRD, KS/KSD KR/KRF, KS/KSF KRT/KST
Hexagonal 4-10mm2
Hexagonal 10mm2
16mm2
25mm2
35mm2
50mm2
70mm2
95mm2
MB4016
MB8
MB8
MB9
MB11
MB12
MB14
MB17
MB4016
MB8
MB9
MB11
MB13
MB14.5
MB17
-
MB7
MB8.5
MB10
MB12
MB14
MB16


*Technical Data Subject to Change Without Notice

Elpress Mini PVL350 Battery operated crimping tool Data Sheet
