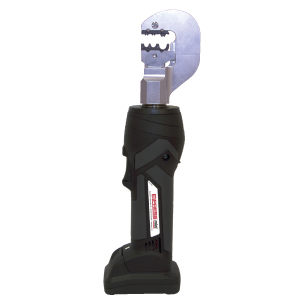

Elpress Mini PVL130P Electro Hydraulic Crimping Tool

Elpress-Mini-PVL130P-Electro-Hydraulic-Crimping-ToolPVL 130P Battery Operated Crimping Tool replaces Elpress PV130P

The Elpress mini tool PVL130P in a new sleek design with a high performance Li-Ion battery that streamlines your work with its improved battery capacity.

CHARACTERISTICS:
• Single-handed operation for easy control of all tool functions
• Powerful crimping head ensures long service life
• Optimum crimping due to parallel guided crimping dies
• Easy to use due to its low weight
• High-performance 10.8 V Li-Ion battery – with indication of charge status
• Open head, rotatable
• Easy and comfortable to use with one hand thanks to its ergonomic 2-component housing with grip-friendly protection
• Automatic return of dies when crimping is completed









TECHNICAL DATA PVL130P:
Crimping force max 13 kN
Crimping range 0.14 - 50 mm²
Crimping process about 2 s (dependent on material)
Number of crimps about 230 for 10 mm² Cu
Battery voltage 10.8 V
Battery capacity 1.5 Ah, Li-Ion
Charge time about 40 minutes.
Weight including battery 1.5 kg
Ambient temperature -10°C to +40°C
Dimensions 330 x 85 x 60 mm

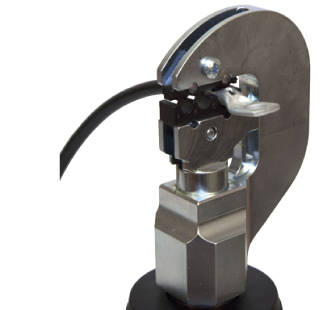

Application Area Dies Crimp Range Elpress-Mini-PVL130P-Electro-Hydraulic-Crimping-Tool-HEAD
Insulated 0.5 - 6mm² SA0760
Uninsulated

Uninsulated

Uninsulated
0.25 - 2.5mm²

0.5 - 6mm²

4 - 10mm²
KB0325

RB0560

WB4099


End Sleeves 0.5 - 6mm²

4 - 10mm²

10 - 25mm²

35 - 50mm²
EB0560

EB4010

EB1025

EB3550


*Technical Data Subject to Change Without Notice

Elpress Mini PVL130P Electric Crimp Tool Data Sheet
