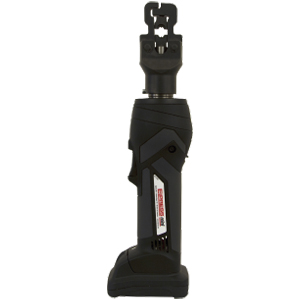

Elpress Mini PVL130L Electro Hydraulic Crimping Tool

Elpress-Mini-PVL130L-Electro-Hydraulic-Crimping-ToolFor crimping of standard Transformer tap changers 30A and 63A

PVL 130L Battery Operated Crimping Tool replaces Elpress PV130L

The Elpress mini tool PVL130L in a new sleek design with a high performance Li-Ion battery that streamlines your work with its improved battery capacity. To be used for crimping of standard tap changers for 30A and 63 A.

CHARACTERISTICS:
• Single-handed operation for easy control of all tool functions
• Powerful crimping head ensures long service life
• Easy to use due to its low weight
• High-performance 10.8 V Li-Ion battery – with indication of charge status
• Rotatable head
• Easy and comfortable to use with one hand thanks to its ergonomic 2-component housing with grip-friendly protection
• Automatic return of dies when crimping is completed








TECHNICAL DATA PVL130L:
Crimping force max 13 kN
Crimping range 30 A and 63 A
Crimping process about 3 s (dependent on material)
Battery voltage 10.8 V
Battery capacity 1.5 Ah, Li-Ion
Charge time about 40 minutes.
Weight including battery 1.5 kg
Ambient temperature -10°C to +40°C
Dimensions 325 x 85 x 60 mm

Transformer Tap Changer Die No. Elpress-Mini-PVL130L-Electro-Hydraulic-Crimping-Tool-Die-Set-LB5-LB7
Elpress Crimping
Dies LB7
Size Ø 5 mm Elpress LB5
Size Ø 7 mm Elpress LB7

*Technical Data Subject to Change Without Notice

Elpress Mini PVL130L Electric Crimp Tool Data Sheet
