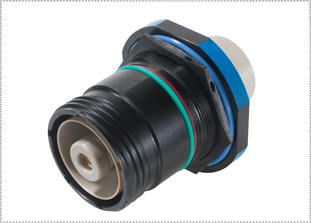

Amphenol Rhino MIl DTL 38999 Series Connectors

Amphenol-Rhino-Series-ConnectorsSINGLE POLE HIGH POWER CONNECTOR - ENVIRONMENTALLY SEALED; MATED AND UNMATED

Amphenol combines the benefits of field proven MIl-DTL-38999 Series III circular connectors with low resistance hyperbolic RADSOK® contacts that extend the boundaries of high power connector technology. Designed to meet the latest military and industrial specifications, Rhino 38999 connectors also meet stringent safety requirements.

Rhino 38999 connectors are intended to satisfy market requirements for high power & voltage applications in harsh environments. With IP69K sealing, an anti-decoupling ratchet mechanism, superior EMC performance and RoHS compliant Black Zinc Nickel plating, Rhino 38999 connectors ensure a reliable connection even under high vibration.

High reliability applications including vehicular, aerospace, industrial automation, mining, offshore, mass transit, communications and other harsh environment applications can all be addressed using the Rhino 38999 series.To ensure that your crimped connections maintain a high and even level of quality, regular checks of the crimping tools must be carried out. Maintenance procedures are facilitated by signing special preventive maintenance agreements, whereby we call in your tools in accordance with the agreement and return them, checked and certified.

Amphenol Rhino MIl DTL 38999 Series Connectors Data Sheet (Elpress Tooling to be used with connectors)

All enquiries:
Contact Us
+44 (0)1744 762 929

AMPHENOL RHINO SERIES FEATURES

Technology
Current rating up to 1000A, Operating Voltage up to 875VAC/1238VDC

Mechanical
38999 Series III or Bulldog breakaway connector interface, jam-nut, flange mount and inline connections, 500+ matings

Termination
Crimp, screw or flathead contact termination available. Straight or right angled backshells available for strain relief

Safety
IP2X, plastic cap on pin contact to prevent shock

Environmental
Aluminium, Stainless Steel or Aluminium Bronze shells available. Temperature range -55°C to +125°C, 500 Hour Salt Spray - plating dependent. IP69K sealing.

RoHS Compliant
Zinc Cobalt and Zinc Nickel plating finishes available.
AMPHENOL RHINO SERIES APPLICATIONS

Harsh environment vehicles

Hybrid and electric drive vehicles

Military aircraft

Naval systems

C4I base stations

Power distribution modules

Communications towers

Satellite communications

Mass transit


Contacts & Tooling

Elpress specified tooling to be used in conjunction with Amphenol Rhino Series Connectors

PINS

      Elpress-ES2258-Amphenol-Rhino-Connectors Elpress-PS710E251-Amphenol-Rhino-Connectors Elpress-DV1300-Amphenol-Rhino-Connectors Elpress-DB-Dies-Amphenol-Rhino-Connectors Strip-Length-Amphenol-Rhino-Connectors
LAYOUT CRIMP
TERMINATION
SELECTION
WIRE SIZE HAND TOOL POWER TOOL HEAD DIE STRIP LENGTH (MM)
13-85* -1 16mm² - Elpress PS710E251 Elpress
DV1300
Elpress 13DB9 13.5 +0.0 / -0.5
-6 10mm² - Elpress 13DB8 13.5 +0.0 / -0.5
-7 6mm² Elpress ES2258 - - - 10.0 +0.0 / -0.5
15-120* -1 25mm² - Elpress PS710E251 Elpress
DV1300
Elpress 13DB11 17.0 +0.0 / -0.5
-6 16mm² - Elpress 13DB9 13.5 +0.0 / -0.5
17-185* -1 50mm² - Elpress PS710E251 Elpress
DV1300
Elpress 13DB14.5 19.5 +0.0 / -0.5
-6 35mm² - Elpress 13DB13 19.5 +0.0 / -0.5
21-340* -1 95mm² - Elpress PS710E251 Elpress
DV1300
Elpress 13DB20 22.0 +0.0 / -0.5
-6 70mm² - Elpress 13DB17 22.0 +0.0 / -0.5
-7 50mm² - Elpress 13DB14.5 19.5 +0.0 / -0.5
23-500* -1 120mm² - Elpress PS710E251 Elpress
DV1300
Elpress 13DB22 24.5 +0.0 / -0.5
-6 95mm² - Elpress 13DB20 22.0 +0.0 / -0.5
-7 70mm² - Elpress 13DB17 22.0 +0.0 / -0.5
-8 50mm² - Elpress 13DB14.5 19.5 +0.0 / -0.5
25-1000** -6 240mm² - Elpress PS710E251 Elpress
DV1300
Elpress 13DB30 35.5 +0.0 / -0.5
-7 185mm² - Elpress 13DB27 35.5 +0.0 / -0.5
-8 150mm² - Elpress 13DB25 35.5 +0.0 / -0.5
-9 120mm² - Elpress 13DB22 35.5 +0.0 / -0.5

* Single Crimp Termination
** Double Crimp Termination


SOCKET

      Elpress-ES2258-Amphenol-Rhino-Connectors Elpress-PS710E251-Amphenol-Rhino-Connectors Elpress-DV1300-Amphenol-Rhino-Connectors Elpress-DB-Dies-Amphenol-Rhino-Connectors Strip-Length-Amphenol-Rhino-Connectors
LAYOUT CRIMP
TERMINATION
SELECTION
WIRE SIZE HAND TOOL POWER TOOL HEAD DIE STRIP LENGTH (MM)
13-85* -1 16mm² - Elpress PS710E251 Elpress
DV1300
Elpress 13DB9 13.5 +0.0 / -0.5
-6 10mm² - Elpress 13DB8 13.5 +0.0 / -0.5
-7 6mm² Elpress ES2258 - - - 10.0 +0.0 / -0.5
15-120* -1 25mm² - Elpress PS710E251 Elpress
DV1300
Elpress 13DB11 17.0 +0.0 / -0.5
-6 16mm² - Elpress 13DB9 13.5 +0.0 / -0.5
17-185* -1 50mm² - Elpress PS710E251 Elpress
DV1300
Elpress 13DB14.5 19.5 +0.0 / -0.5
-6 35mm² - Elpress 13DB13 19.5 +0.0 / -0.5
21-340* -1 95mm² - Elpress PS710E251 Elpress
DV1300
Elpress 13DB20 22.0 +0.0 / -0.5
-6 70mm² - Elpress 13DB17 22.0 +0.0 / -0.5
-7 50mm² - Elpress 13DB14.5 19.5 +0.0 / -0.5
23-500* -1 120mm² - Elpress PS710E251 Elpress
DV1300
Elpress 13DB22 24.5 +0.0 / -0.5
-6 95mm² - Elpress 13DB20 22.0 +0.0 / -0.5
-7 70mm² - Elpress 13DB17 22.0 +0.0 / -0.5
-8 50mm² - Elpress 13DB14.5 19.5 +0.0 / -0.5
25-1000** -6 240mm² - Elpress PS710E251 Elpress
DV1300
Elpress 13DB30 35.5 +0.0 / -0.5
-7 185mm² - Elpress 13DB27 35.5 +0.0 / -0.5
-8 150mm² - Elpress 13DB25 35.5 +0.0 / -0.5
-9 120mm² - Elpress 13DB22 35.5 +0.0 / -0.5

* Single Crimp Termination
** Double Crimp Termination
